Lane indicator lights

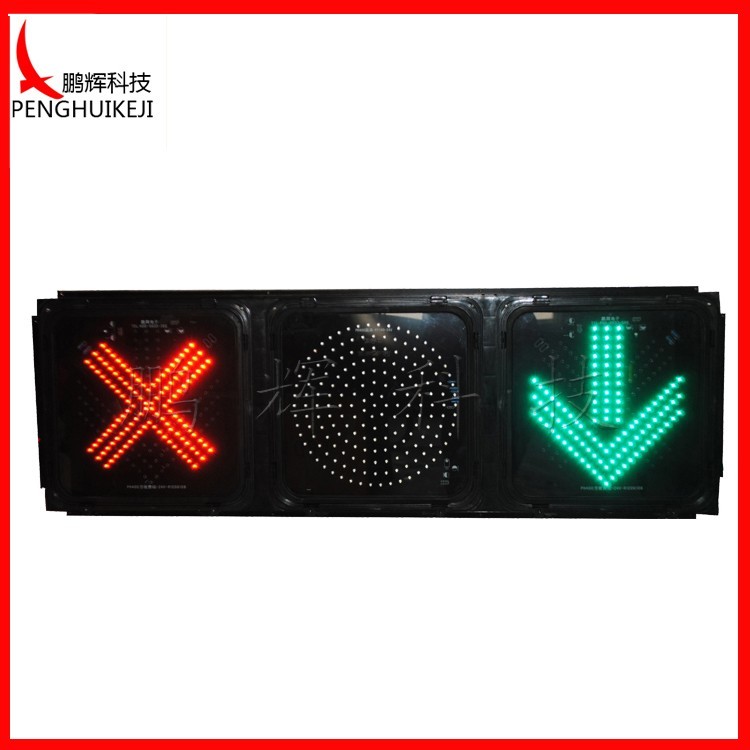

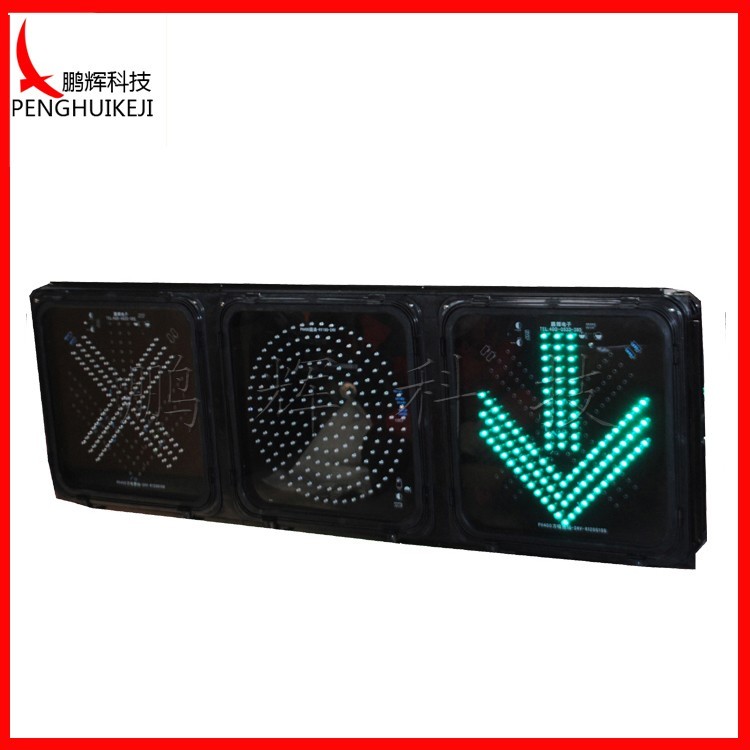

The Red Cross with Huang Manping light green arrow

ModelThe Red Cross with Huang Manping light green arrow
TimePHJD400-3-CJ
AddressShandong penghui intelligent technology co. LTD

Detailed

Product description

Red fork green arrow with Huang Manping signal lamp, left Weihong fork signal lamp, intermediate for Huang Manping, right arrow lights, color signal of single screen display.

Product features

The indicators in line with the people's Republic of China GB14887-2011 "road traffic signal lights" standard.

The four elements of imported super bright LED lamp, uniform color, visual angle, distance, long service life.

Using silicone rubber seal, dust, waterproof, flame retardant, effective to eliminate all kinds of hidden dangers.

parameter

Specification: Phi 300, Phi 400, Phi 500

Shell material: PC, Aluminum Alloy, die casting aluminum

Installation: horizontal and vertical

Light source life: 100 thousand hours

Center wavelength: red 625nm, yellow 590nm, green 505nm

Temperature resistance: ~+85 C -40 C

Operating voltage: DC12V/24V, AC (220 + 20%) V (optional)

Visual angle: 30 degrees

Visual distance: not less than 500m

Thermal performance: air relative humidity 5% ~ 95% (no condensate)

Insulation resistance: > 10M

Wind resistance rating: 145m/h

Shell protection class: IP53
